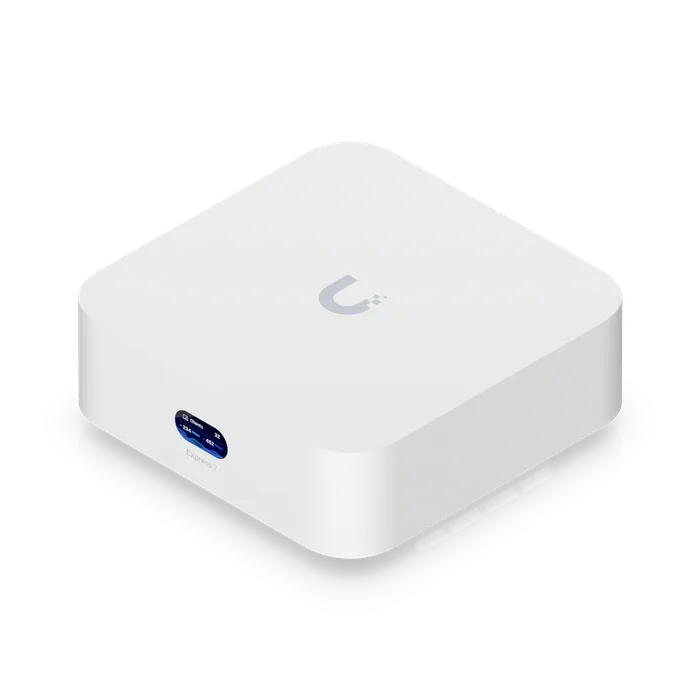

UniFi Express 7 (UX7)
Supplied and installed · Charleston & the LowcountryUbiquiti UniFi · UX7
UniFi Express 7
Mesh-scalable, super-compact 10G Cloud Gateway with integrated WiFi 7.
In short
Integrated 6-stream WiFi 7 with 6 GHz support
Optionally adopted as wired or meshed Layer 2 UniFi AP to extend coverage
160 m² (1,750 ft²) coverage
Manages 30+ UniFi devices and 300+ clients
(1) 10 GbE RJ45 WAN port- (1) 2.5 GbE RJ45 LAN port to extend network
Full specifications
Manufacturer data for the UX7.
Overview
| Dimensions | 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'') |
| Managed UniFi Devices | 30+ |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 1 |
| Default WAN Ports | (1) 10 GbE RJ45 |
| Port Layout · 2.5 GbE RJ45 | 1 (2.5G/1G/100M/10M) |
| Port Layout · 10 GbE RJ45 | 1 (10G/5G/2.5G/1G/100M) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Compact desktop |
| Coverage Area | 160 m² (1,750 ft²) |
Security
| IDS/IPS Signatures | 20,000+ with CyberSecure |
Integrated WiFi
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7) |
| Throughput · 6 GHz | 5.7 Gbps |
| Throughput · 5 GHz | 4.3 Gbps |
| Throughput · 2.4 GHz | 688 Mbps |
| MIMO · 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 5 GHz | 2 x 2 (DL/UL MU-MIMO) |
| MIMO · 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Antenna Gain · 6 GHz | 6 dBi |
| Antenna Gain · 5 GHz | 7 dBi |
| Antenna Gain · 2.4 GHz | 4 dBi |
| Max. TX Power · 6 GHz | 24 dBm |
| Max. TX Power · 5 GHz | 26 dBm |
| Max. TX Power · 2.4 GHz | 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max. BSSIDs | 4 per Radio (Gateway Mode) 4 per Radio (AP Mode) |
| Supported Data Rates · 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) |
| Supported Data Rates · 802.11ax (WiFi 6/6E) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) |
| Supported Data Rates · 802.11ac (WiFi 5) | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) |
| Supported Data Rates · 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates · 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates · 802.11b | 1, 2, 5.5, 11 Mbps |
| Supported Data Rates · 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
Hardware
| Max. Power Consumption | 22W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 75 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | 443 g (1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 06656-25-08356 |
Software
| VLAN | 802.1Q |
| Application Requirements · UniFi Network | Version 9.0.108 and later |
What the install covers
The gateway routes, firewalls and runs the VPN, and it is where the controller for your switches, access points, cameras and doors lives.
Cutovers are staged and configured before anything is unplugged, then swapped in a window where an outage costs nothing. Firewall rules and network separation - guests, card terminals and cameras off the same network as your files - come after the line is up.
Questions we get asked
Do these need a subscription to keep working?
No. UniFi devices are managed from a console you own, with no per-device licence required to keep them running.
Do you supply the hardware as well as install it?
Yes - equipment and installation are quoted together as one job.
Do you work outside Charleston?
We cover Charleston, Mount Pleasant, North Charleston, Summerville, Daniel Island and the surrounding Lowcountry.
Get a price on the UX7
Tell us the building and what it has to cover. We quote the equipment and the installation together.
