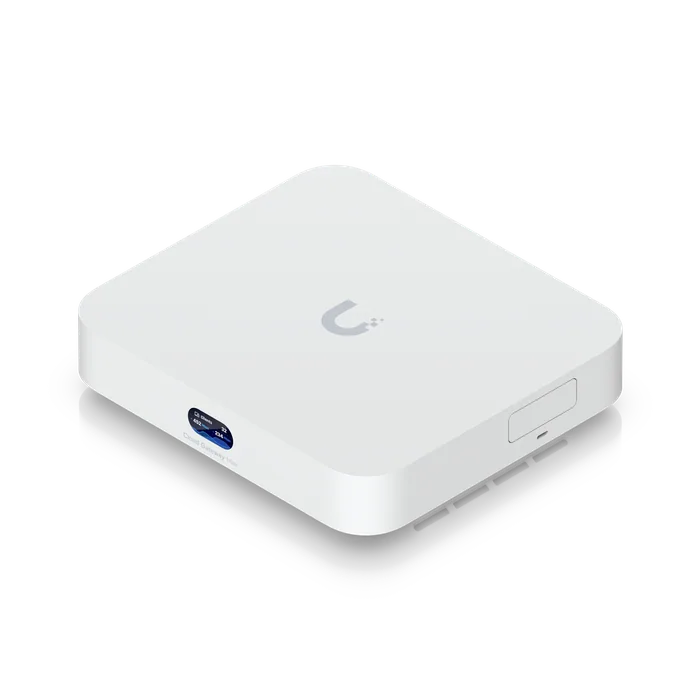

Cloud Gateway Max (UCG-Max)
Supplied and installed · Charleston & the LowcountryUbiquiti UniFi · UCG-Max
Cloud Gateway Max
Compact 2.5G Cloud Gateway with 30+ UniFi device / 300+ client support, 2.3 Gbps IPS routing, and selectable NVR storage.
In short
Includes full UniFi application suite for device management
Manages 30+ UniFi devices and 300+ clients
2.3 Gbps routing with IDS/IPS
Multi-WAN load balancing
512 GB NVMe SSD storage for NVR
0.96" LCM status display
USB-C powered (adapter included)
Full specifications
Manufacturer data for the UCG-Max.
Overview
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (15) HD (8) 2K (5) 4K |
| Managed Access Hubs | 50Please note, Reader Pro and Intercom quantities must be below Protect supported camera limits. |
| Simultaneous Users Connected | 300+ |
| Max. WAN Port Count | 4 |
| Default WAN Ports | (1) 2.5 GbE RJ45 |
| Port Layout · 2.5 GbE RJ45 | 5 (2.5G/1G/100M/10M) |
| IDS/IPS Throughput | 2.3 GbpsWith UniFi OS 4.1 or later. |
| Form Factor | Compact desktop |
Security
| IDS/IPS Signatures | 55,000+ with CyberSecure |
Networking
| MAC Address Table Size | 2,000 |
Hardware
| NVR Storage | Selectable NVMe SSD up to 2 TBNo Storage option does not include NVMe SSD. Third-party SSD installation requires a tray accessory. 512 GB, 1/2 TB option includes tray accessory and NVMe SSD. |
| Max. Power Consumption | 16.1W |
| Power Method | USB type C (5V DC/5A) |
| Power Supply | USB type C (5V DC/5A) (Adapter included) |
| Supported Voltage Range | 100–240V AC |
| Heat Dissipation | 55 BTU/hr |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System Memory | 3 GB |
| Weight | Without SSD: 460 g (1 lb) With SSD: 519 g (1.1 lb) |
| Enclosure Material | Polycarbonate |
| LCM Display | 0.96" status display |
| Management | Ethernet Bluetooth |
| Button | (1) Factory reset |
| ESD/EMP Protection | Air: ± 8kV, contact: ± 4kV |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, Anatel: 09004-24-08356, SRRC |
Software
| Application Requirements · Mobile App | UniFi iOS™ and Android™: Version 10.17.2 and later |
What the install covers
The gateway routes, firewalls and runs the VPN, and it is where the controller for your switches, access points, cameras and doors lives.
Cutovers are staged and configured before anything is unplugged, then swapped in a window where an outage costs nothing. Firewall rules and network separation - guests, card terminals and cameras off the same network as your files - come after the line is up.
Questions we get asked
Do these need a subscription to keep working?
No. UniFi devices are managed from a console you own, with no per-device licence required to keep them running.
Do you supply the hardware as well as install it?
Yes - equipment and installation are quoted together as one job.
Do you work outside Charleston?
We cover Charleston, Mount Pleasant, North Charleston, Summerville, Daniel Island and the surrounding Lowcountry.
Get a price on the UCG-Max
Tell us the building and what it has to cover. We quote the equipment and the installation together.
